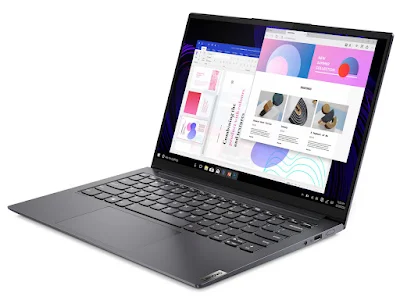

LENOVO Yoga Slim 7 Pro 14ACH5 LCFC NM-D691 REV:1.0 BOARDVIEW File
For professional technicians and dedicated electronics enthusiasts, encountering a stubborn motherboard issue on a sophisticated machine like the Lenovo Yoga Slim 7 Pro 14ACH5 can be a significant hurdle. When standard diagnostics fall short, the LENOVO Yoga Slim 7 Pro 14ACH5 LCFC NM-D691 REV:1.0 BOARDVIEW File becomes an invaluable, often essential, tool for successful component-level repair.
What is a Boardview File?
Unlike a schematic (which shows the electrical connections and components), a boardview file is a specialized software document used with specific viewer applications. It provides a detailed graphical overlay of the physical motherboard (PCB). Key features include:
Component Location Mapping: Precisely identifies every resistor, capacitor, IC, connector, and test point on the board, often using reference designators (like R501, C202, U1001).
Net Highlighting: Allows technicians to visually trace signal paths across the complex multi-layered PCB by highlighting entire electrical nets (connections) when a component or point is selected.
Troubleshooting Efficiency: Drastically speeds up the process of locating test points, checking continuity, identifying shorted components, and verifying power rails compared to relying solely on physical board inspection or schematics alone.
Complex Circuit Analysis: Essential for diagnosing intricate issues involving chipsets (like AMD Ryzen CPUs or integrated controllers), power delivery circuits, and high-speed interfaces.
Why the NM-D691 REV:1.0 Boardview is Crucial for the Yoga Slim 7 Pro 14ACH5
The Yoga Slim 7 Pro 14ACH5 is a high-performance ultraportable. Its motherboard (manufacturer code LCFC, model NM-D691, Revision 1.0) is densely packed and complex. Common issues like no power, charging problems, USB-C port failures, display issues, or liquid damage require pinpoint accuracy to diagnose. The NM-D691 REV:1.0 BOARDVIEW file provides the detailed physical roadmap needed to:
Locate specific fuses or MOSFETs in the power sequence.
Trace voltage lines from the charger IC to the battery connector and CPU VRMs.
Identify test points for critical signals (PWRBTN#, SLP_S3#, etc.).
Visually inspect component placement after potential liquid spill damage.
Verify component values and placements during complex repairs.
Finding the LCFC NM-D691 REV:1.0 Boardview File: Challenges and Sources
Obtaining legitimate boardview files can be challenging. Manufacturers like Lenovo do not publicly distribute them. Technicians rely on specialized sources:
Paid Technical Repair Forums & Databases: Reputable platforms catering to professional repair businesses often maintain extensive, verified collections of schematics and boardviews. Membership usually requires a subscription fee. (Examples: BadCaps Forums (Marketplace Section), specialized paid schematic sites).
Dedicated Schematic/Boardview Vendors: Several online vendors specialize in selling individual boardview files. Crucially: Verify the vendor's reputation through reviews or technician communities before purchasing. Ensure they specify the exact match: "LCFC NM-D691 REV:1.0".
Technician Networks & Communities: Sharing verified resources within trusted professional communities or forums can be a source, though direct file sharing might be restricted on public platforms. Asking specifically for the "Yoga Slim 7 Pro 14ACH5 NM-D691 REV 1.0 Boardview" in relevant groups can yield leads.
Critical Considerations & Warnings:
Malware Risk: Free download sites promising boardview files are notorious vectors for viruses, spyware, and ransomware. Exercise extreme caution. Avoid "crack" sites.
File Compatibility: Ensure you have the correct boardview viewer software (e.g., OpenBoardView, BoardViewer, TSICT, FZ) compatible with the specific file format (.brd, .bdv, .fz, .tvw, etc.).
Revision Matters: Motherboard revisions (REV:1.0, REV:1.1, etc.) can have significant layout differences. Using the wrong revision boardview can lead to misdiagnosis. Confirm REV:1.0 is correct for your specific motherboard.
Copyright: Be aware that distributing copyrighted boardview files without authorization may violate intellectual property rights. Use them responsibly for repair purposes.
Conclusion
The LENOVO Yoga Slim 7 Pro 14ACH5 LCFC NM-D691 REV:1.0 BOARDVIEW File is not a casual download; it's a professional-grade tool. For technicians tackling intricate hardware failures on this specific motherboard revision, it represents the difference between hours of frustrating guesswork and efficient, accurate repair. Prioritize sourcing it from reputable paid technician forums or trusted vendors to ensure authenticity and avoid security risks. With the correct boardview in hand, diagnosing complex power issues, signal path problems, or physical damage on the NM-D691 REV:1.0 motherboard becomes a structured and achievable task, bringing these powerful Yoga Slim 7 Pro laptops back to life.
